Comparing Flat Panel and Evacuated Tube Solar Collectors

Flat plate solar collector VS Vacuum tube collector

Introduction

As the world increasingly turns towards renewable energy sources, solar technology has evolved to offer various solutions for residential and commercial use. Flat plate solar collectors and evacuated tube solar collectors are two popular types among these. Here we will talk about the differences between these two technologies which may help you choose the right one for your needs.

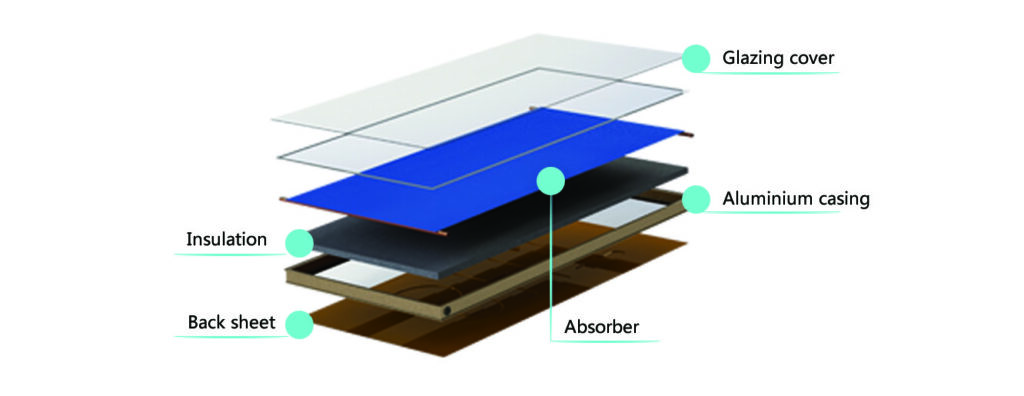

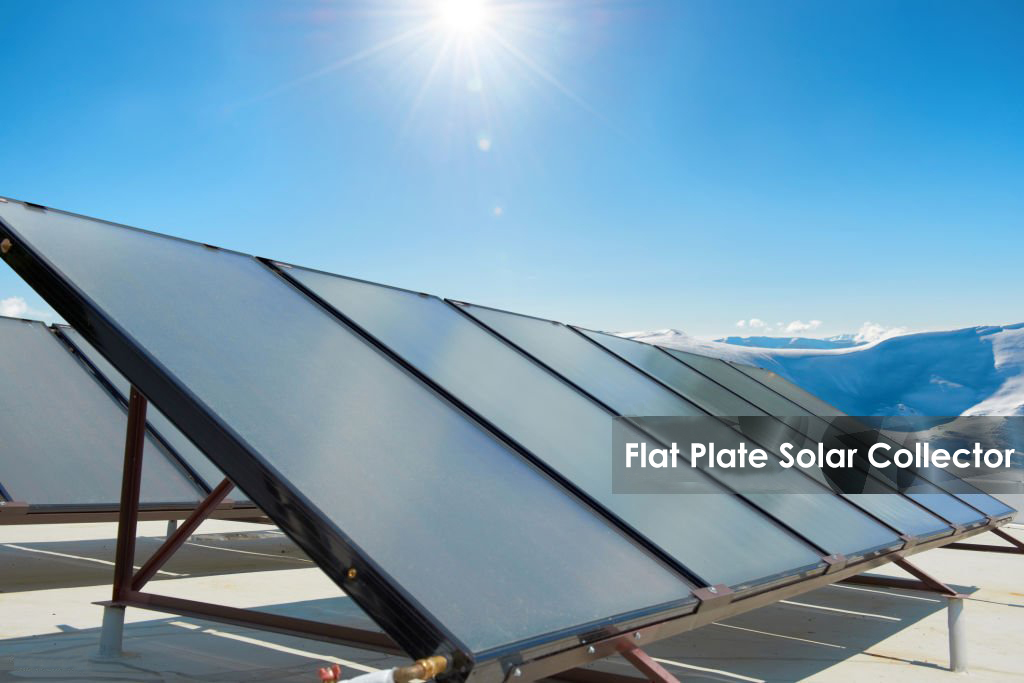

What are Flat Panel Solar Collectors?

Flat panel solar collectors are the most common type of solar thermal collectors. These panels consist of an absorber plate, usually made of copper or aluminum, coated with a solar-absorbing material, and covered with a sheet of glass or plastic to reduce heat loss. They are typically used for domestic hot water heating and can be installed on roofs or walls.

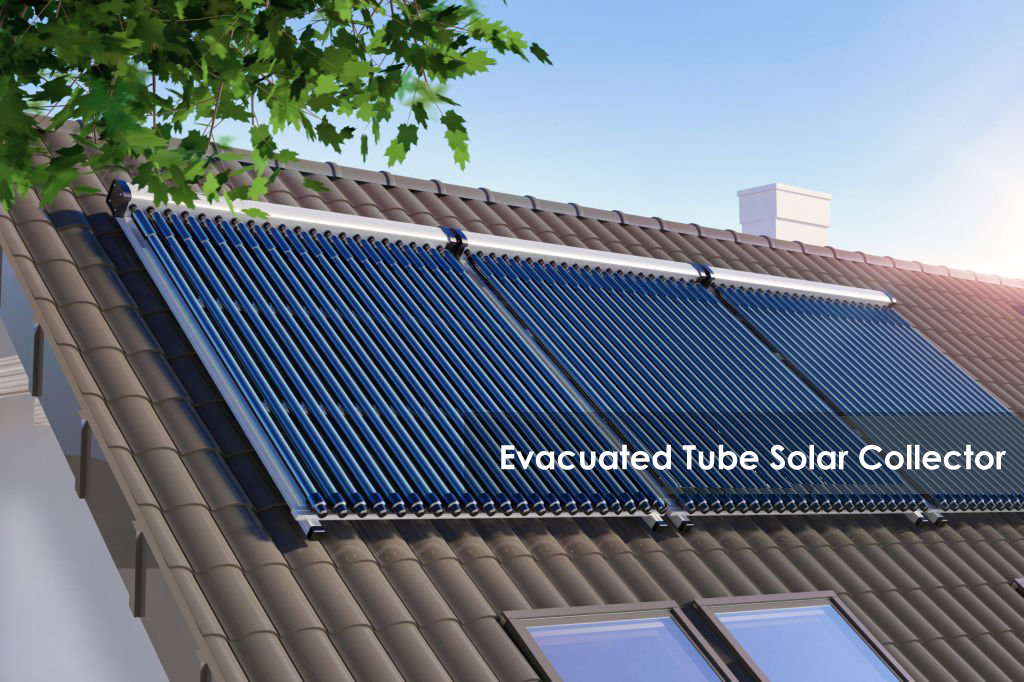

What are Evacuated Tube Solar Collectors?

Evacuated tube collectors consist of multiple glass tubes, each containing an absorber strip to which heat is transferred. The tubes are vacuum-sealed to minimize heat loss. This design is highly efficient and performs well in colder climates and during periods of lower solar radiation.

Performance Comparison

  1. Efficiency: Evacuated tube collectors are generally more efficient than flat panel collectors, especially in colder climates. The vacuum within the tubes provides excellent insulation, leading to better heat retention.
  2. Cost: Flat panel collectors are typically less expensive than evacuated tube collectors. This makes them a more cost-effective solution, particularly in milder climates where high efficiency is not as crucial.
  3. Durability and Maintenance: Flat panel collectors are known for their durability and require less maintenance. Evacuated tubes, while robust, may require more attention as each tube can be individually damaged.
  4. Installation: Flat panel collectors are heavier and may require a more robust support structure. Evacuated tubes are lighter and can be easier to install, especially on roofs with load limitations.
  5. Aesthetic and Space Considerations: Flat panel collectors have a more uniform appearance and can blend in more seamlessly with the building’s architecture. Evacuated tubes are more noticeable and require more space per unit of heat generated.

Which is Right for You?

The choice between flat panel and evacuated tube solar collectors depends on several factors:
•   Climate: In colder, less sunny climates, evacuated tube collectors are generally the better option due to their superior efficiency and heat retention.
•   Budget: If initial cost is a significant factor, flat panel collectors are more affordable and offer a good balance of performance and cost.
•  Space and Aesthetic Preferences: If roof space is limited or aesthetic integration is important, flat panel collectors might be more suitable.
•   Maintenance and Durability: Flat panel collectors are advantageous for those seeking a low-maintenance solution due to their robustness and simplicity.

Conclusion

Both flat panel and evacuated tube solar collectors have their advantages, and the best choice depends on your specific circumstances and needs. By considering factors like climate, cost, space, and maintenance requirements, you can make an informed decision that ensures efficient, sustainable, and cost-effective solar energy for your home or business.
