How to improve the efficiency of solar flat plate collectors?

SolAqua solar collector

Improving the efficiency of a solar flat plate collector involves enhancing its ability to absorb solar radiation and convert it into usable heat energy while minimizing heat losses. Here are some strategies to improve the efficiency:

1-Use Selective Coatings: Apply selective coatings on the absorber plate. These coatings are designed to absorb a high percentage of solar radiation while emitting very little infrared radiation (heat), thus reducing heat loss.

SolAqua uses different coating absorber plates to meet the different efficiency requirements of overseas clients. For some countries, there are abundant solar energy resources, such as Africa, and the Middle East, if the solar thermal collector has higher efficiency, the system may be overheated. Also considering the cost, clients usually choose the collectors with black chrome coating.

2-Improve Insulation: Enhance the insulation at the back and sides of the collector to reduce heat loss to the environment. Materials like polyurethane foam or rock wool can be effective.

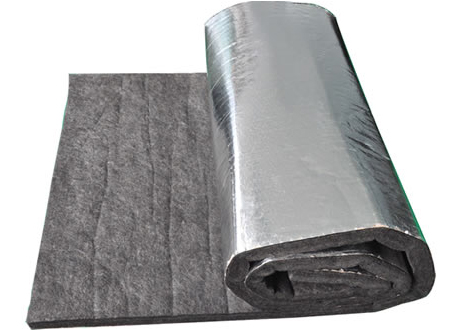

All SolAqua flat plate solar collectors are produced with high-density polyester fabric with a thickness 40mm at the back and 25mm at the sides of the collector. The material is antiflaming and environmentally friendly.

3- Optimize Glazing: Use low-iron, tempered glass for glazing to maximize solar transmission.

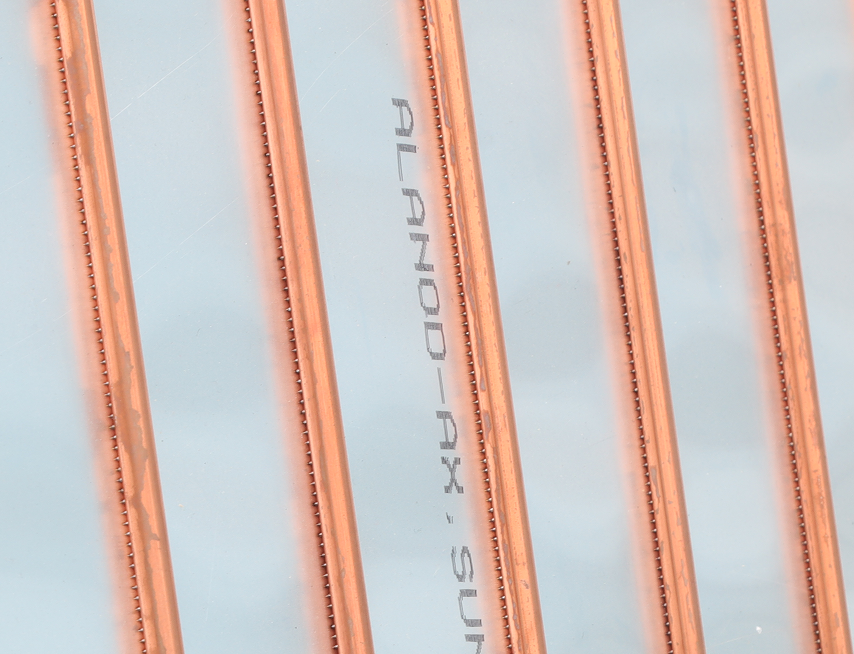

4- Thermal Conductivity Enhancement: Improve the thermal conductivity between the absorber plate and the tubes or channels carrying the heat transfer fluid. This can be achieved by ensuring a good thermal bond, for instance, using soldering or welding instead of adhesive. SolAuqa uses laser welding to bond the absorber plate and the copper tube, and solder joint spacing is optimized to achieve better heat transfer.

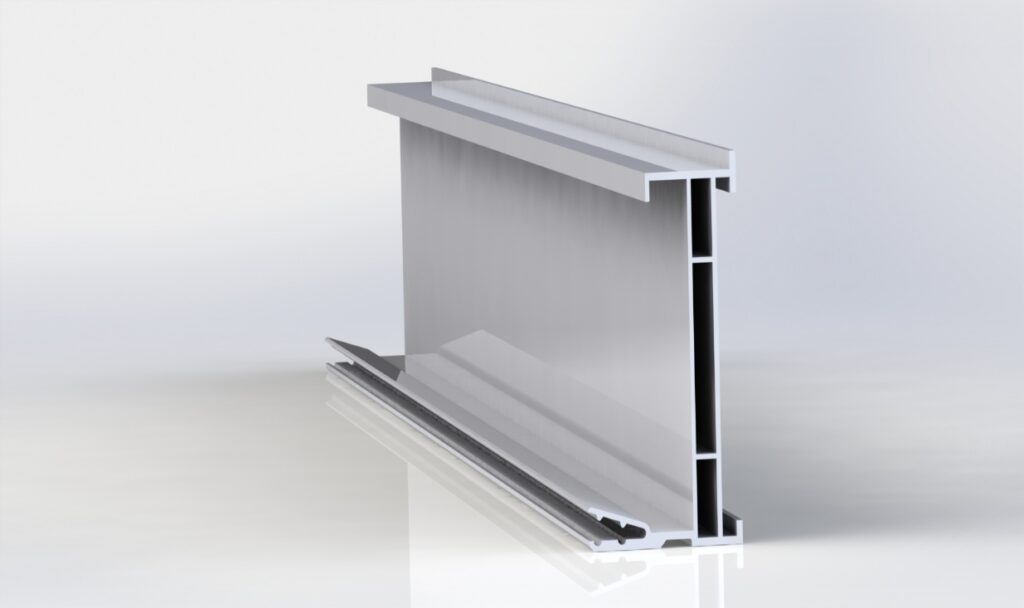

5- Improve the frame: SolAqua uses the double-layer aluminum extrusion casing, which can improve the heat retention of the collector.

6- Control Flow Rate of Heat Transfer Fluid: Optimizing the flow rate of the heat transfer fluid can enhance heat absorption efficiency. Too fast a flow rate may not allow enough time for the fluid to absorb heat, and too slow a flow rate may lead to excessive heat loss.

7- Maintain Transparency of the Cover: Regularly clean the glass cover to maintain its transparency and effectiveness in transmitting solar radiation.

8- Tilt Angle Adjustment: Adjust the tilt angle of the collector according to your geographical location and season to maximize solar exposure.

Implementing these strategies can significantly improve the efficiency of a solar flat plate collector, leading SolAqua solar collectors a better performance and more effective utilization of solar energy.
